using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.IO;
using System.Text.RegularExpressions;
namespace _VirtualCnc
{
public partial class frmMain : Form
{
public frmMain()
{
InitializeComponent();
}
List<PointF> PointList = new List<PointF>();
int pointIndex = 0;
private void ApriProgramma_Click(object sender, EventArgs e)
{
OpenFileDialog open = new OpenFileDialog();
open.Filter = "File di Testo (*.txt)|*.txt|File Cnc(*.cnc)|*.cnc";
if (open.ShowDialog() == DialogResult.OK)
{
tbCode.Text = File.ReadAllText(open.FileName) + ""; // Aggiunta codice alla listbox
sbp_file.Text = "" + open.FileName + ""; // barra di stato per recuperare il file.
}
tbCode.Enabled = false;
}// ApriProgramma_Click
private void Simula_Click(object sender, EventArgs e)
{
Elabora_.Enabled = true;
List<PointF> pt = new List<PointF>();
Regex coord = new Regex(@"X(?<CoordX>-?\d+)Y(?<CoordY>-?\d+)");
MatchCollection mc = coord.Matches(tbCode.Text);
foreach (Match m in mc)
{
int x = int.Parse(m.Groups["CoordX"].Value);
int y = int.Parse(m.Groups["CoordY"].Value);
PointF p = new PointF(x, y);
pt.Add(p);
}
// Get Points From Line(s)
float curDist = 0;
float distance = 0;
for (int i = 0; i < pt.Count - 1; i++)
{
PointF ptA = pt[i];
PointF ptB = pt[i + 1];
float deltaX = ptB.X - ptA.X;
float deltaY = ptB.Y - ptA.Y;
curDist = 0;
distance = (float)Math.Sqrt(Math.Pow(deltaX, 2) + Math.Pow(deltaY, 2));
while (curDist < distance)
{
curDist++;
float offsetX = (float)((double)curDist / (double)distance * (double)deltaX);
float offsetY = (float)((double)curDist / (double)distance * (double)deltaY);
PointList.Add(new PointF(ptA.X + offsetX, ptA.Y + offsetY));
}
}
} // Simula_Click
private void FermaElaborazione_Click(object sender, EventArgs e)
{
this.box.Refresh();
this.Elabora_.Enabled = false;
pointIndex = 0;
}// FermaElaborazione_Click
private void MenuFileEsci_Click(object sender, EventArgs e)
{
this.Close();
}// MenuFileEsci_Click
private void Edita__Click(object sender, EventArgs e)
{
tbCode.Enabled = true;
}
private void frmMain_Load(object sender, EventArgs e)
{
tbCode.Enabled = false;
this.box.SizeMode = PictureBoxSizeMode.CenterImage;
}// Edita__Click
private void SalvaProgramma_Click(object sender, EventArgs e)
{
}// SalvaProgramma_Click
private void MenuAbout_Click(object sender, EventArgs e)
{
AboutBox1 about = new AboutBox1();
about.Show();
}// MenuAbout_Click
private void Elabora__Tick(object sender, EventArgs e)
{
if (pointIndex < PointList.Count - 1)
{
pointIndex++;
this.Refresh();
}
} // Elabora_Tick
private void box_Paint(object sender, PaintEventArgs e)
{
for (int i = 0; i < pointIndex; i++)
{
e.Graphics.PageUnit = GraphicsUnit.Pixel;
e.Graphics.DrawLine(Pens.Black, PointList[i].X, PointList[i].Y, PointList[i + 1].X, PointList[i + 1].Y);
textBox1.Text = "" + PointList[i + 1].X + "";
textBox2.Text = "" + PointList[i + 1].Y + "";
}
} // Box Paint.
}
}
![C# / VB.NET - [C#] Programma coordinate sistema](/data/logos/logositov9.png)
Questo topic è stato chiuso dal moderatore

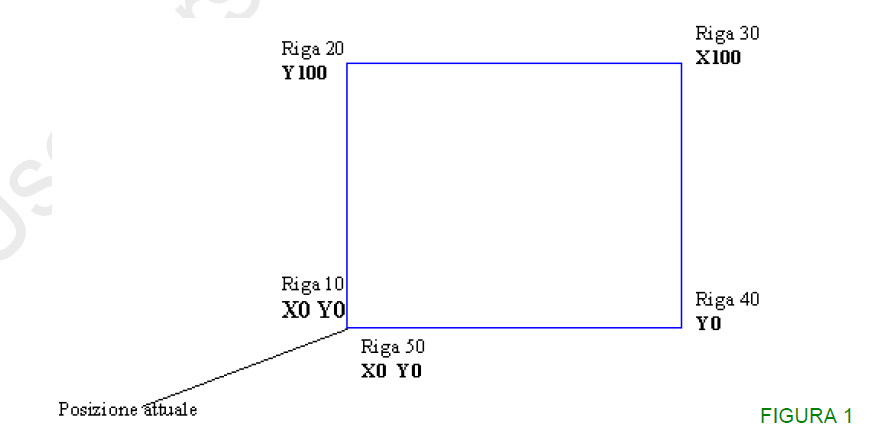

ha allegato un file: Immagine2.png (23124 bytes)
